Description

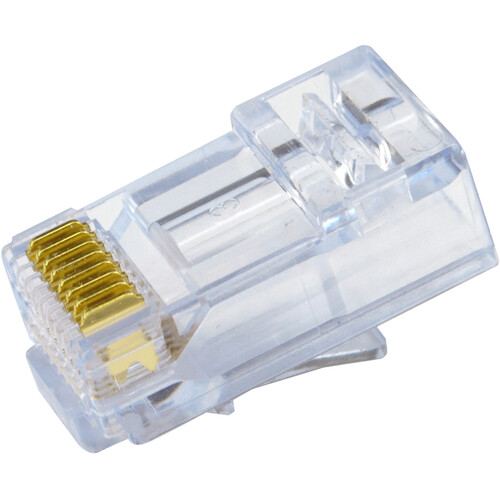

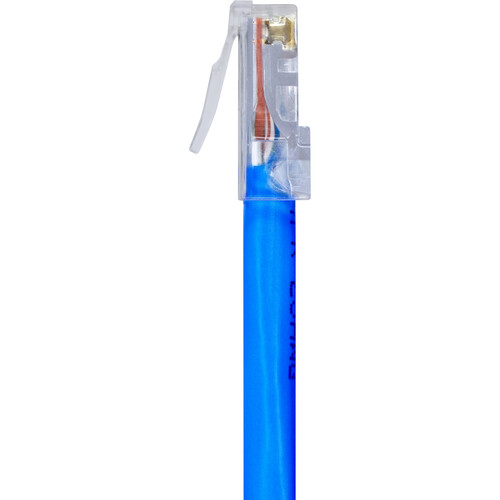

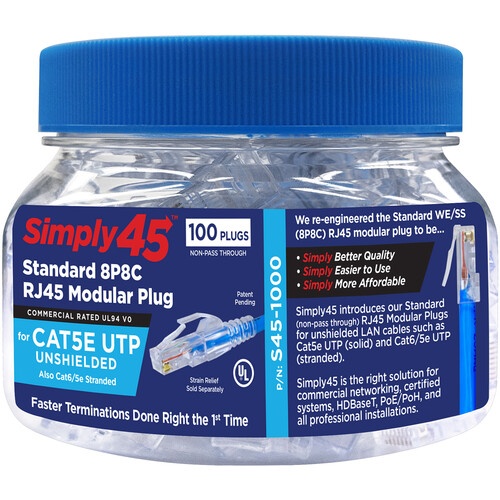

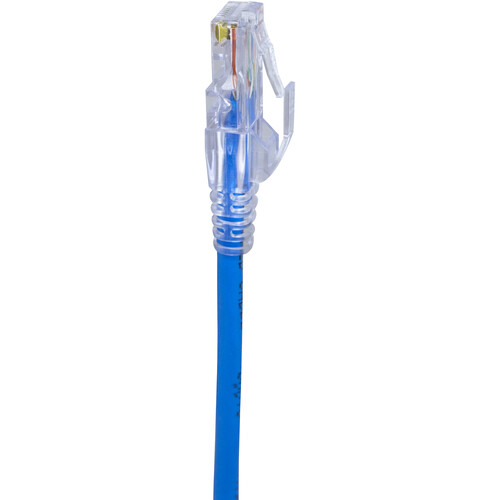

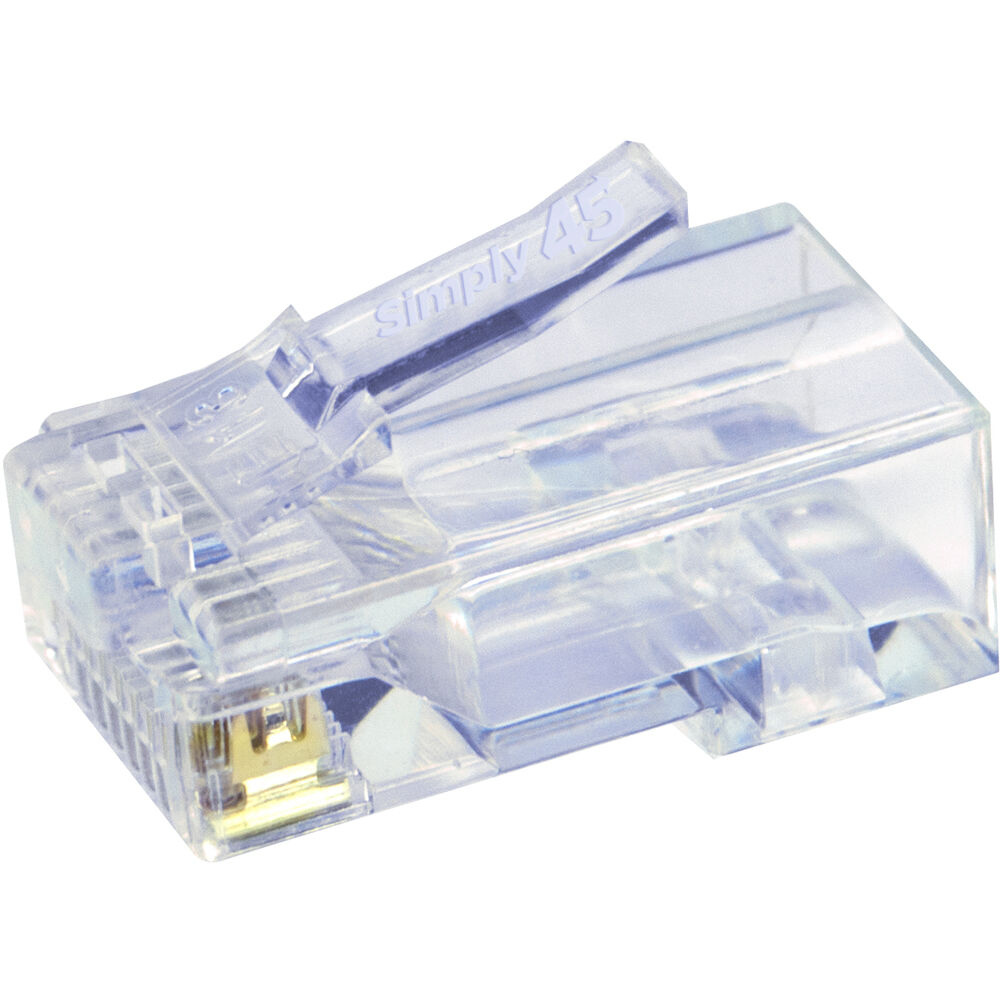

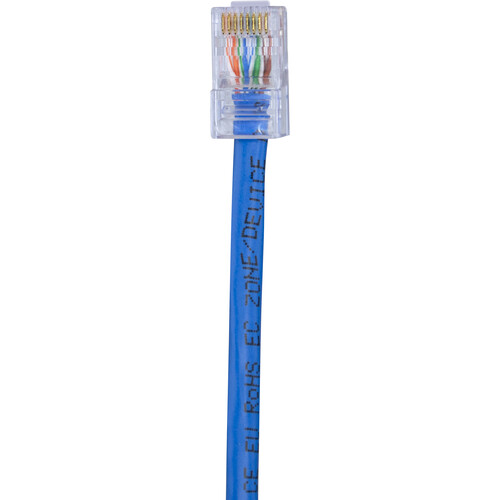

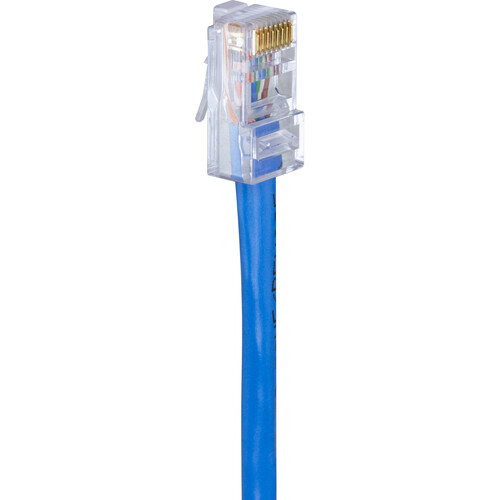

Designed for unshielded twisted pair (UTP) LAN cables, the Simply45 Cat 5e UTP RJ45 Modular Plug offers reliable connectivity for 24 AWG solid and 28-26 AWG stranded cables up to 0.25″ in diameter. The pack includes 100 single-piece RJ45 plugs in a convenient plastic jar, compatible with most Cat 5e LAN cables. Featuring a 3-prong pin design with 50μ 24kt gold plating, these plugs ensure high electrical conductivity and a stronger wire connection, marked by a light blue tint for easy identification. Rated for use with PoE and PoH devices, they provide a robust solution for your networking needs.
Additional information
| Weight | 0.47 lbs |
|---|---|
| Dimensions | 3.95 × 3.7 × 3.35 in |
| Type | RJ45 Male |
| Quantity | 100 |
| Contact Plating | 50 µ Gold<br />100 µ Nickel |
| Contact Material | Bronze |
| Shielded | No |
| Conductor Diameter | 0.041" / 1.05 mm |
| Contact Resistance | 20 milliohms |
| Supported Cable Diameter | 0.3" / 6.4 mm |
| Wire Gauge Supported | 24 to 28 AWG |
| Cable Types Supported | Solid, Stranded |
| Networking Type | Cat 5e |
| Plug Material | Polycarbonate |
| Compliance | RoHS, TAA, UL, FCC |
| Flame Resistance Rating | UL94V-0 |
| Mating Cycles | 2000 |
| Operating Temperature | -40 to 158°F / -40 to 70°C |
