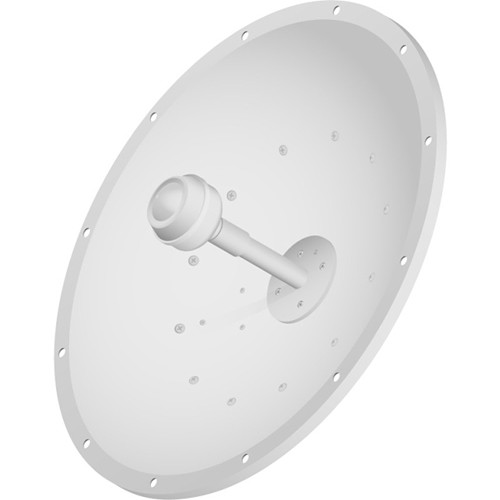

Ubiquiti Networks AF-2G24-S45 24 dBi AirFiber Antenna for 2.4 GHz Carrier Backhaul Radio
$171.75
Boost 2.4 GHz network performance with the Ubiquiti Networks AF-2G24-S45 24 dBi Antenna, designed for airFiber X radios in large point-to-point networks.
In stock
Description
The Ubiquiti Networks AF-2G24-S45 24 dBi Antenna for airFiber X 2.4 GHz Carrier Backhaul Antenna is designed to be paired with an airFiber X radio for enhanced 2.4 GHz frequency performance in large point-to-point networks. With a 2×2 dual-polarity configuration, it handles high-density network traffic efficiently. Its rugged housing withstands harsh weather, and plug-and-play setup simplifies installation.
Additional information
| Weight | 22 lbs |
|---|---|
| Dimensions | 28 × 27.1 × 7.04 in |
| Frequency Range | 2.3-2.7 GHz |
| Gain | 24 dBi |
| Beamwidth | +45°: 6.6° (3 dB)<br> |
| F/B Ratio | 28 dB |
| VSWR | 1.6:1 (max.) |
| Wind Loading | 177 lbf @ 125 mph (787 N @ 200 km/h) |
| Wind Survivability | 125 mph (200 km/h) |
| Polarization | Dual-linear |
| Cross-pol Isolation | 35 dB (min.) |
| ETSI Specification | EN 302 326 DN2 |
