Description

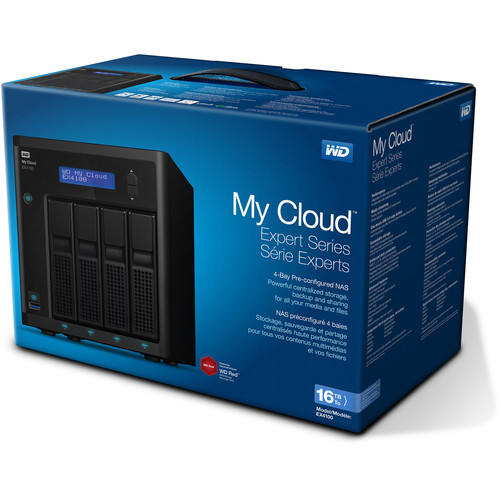

WD My Cloud EX4100: High-Capacity NAS Storage Solution
Expand your storage capabilities with the WD My Cloud Expert Series 16TB EX4100 4-Bay NAS Server, designed for SOHO and home users seeking high-performance and high-capacity storage. This NAS server offers a total storage capacity of 16TB, utilizing four 4TB WD Red drives, and is ideal for centralizing media and files, sharing content across devices, and ensuring comprehensive backup solutions.
Key Features:
- High-Speed Data Transfer: Achieve upload speeds of up to 115 MB/s and download speeds of up to 107 MB/s.
- Easy Setup and Management: Pre-configured for user-friendly setup, with an intuitive dashboard for customizing system features and monitoring storage.

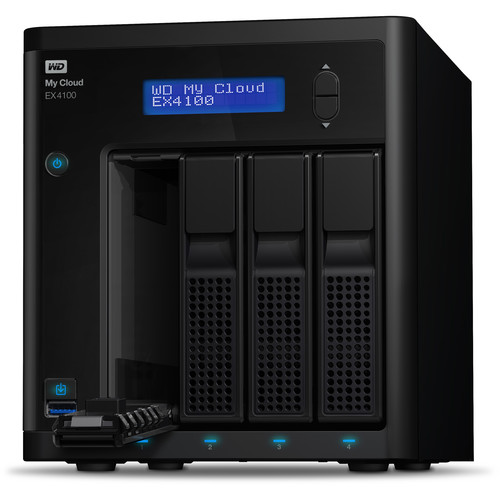

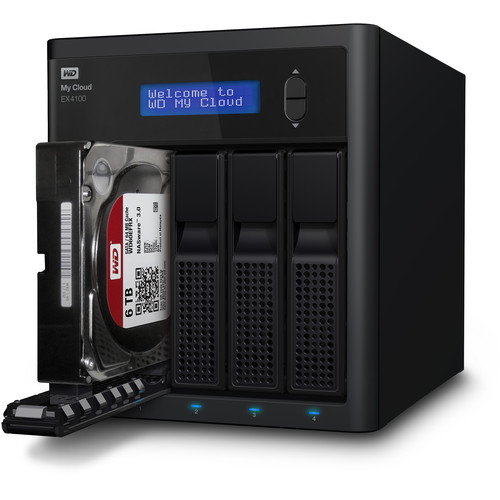

- Toolless Drive Bay Design: Simplifies hot swap process with trayless drive installation.
- Powerful Performance: Powered by a 1.6 GHz Marvell ARMADA 388 Dual-Core processor and 2GB DDR3 RAM for smooth multitasking.

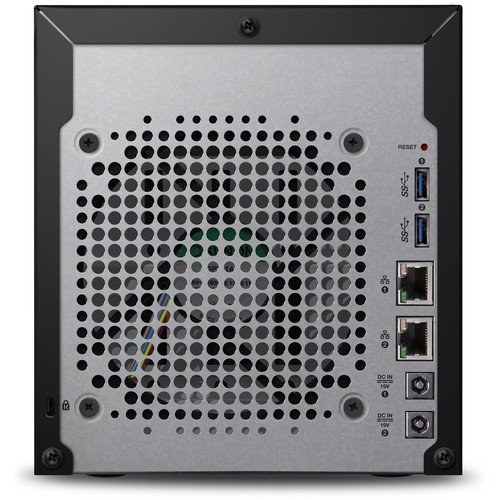

- Dual Gigabit Ethernet Ports: Provides network redundancy and link aggregation for enhanced network performance and HD media streaming.
- Multiple Connectivity Options: Includes 3 x USB 3.0 ports for additional storage expansion or device connectivity.
- Advanced Data Protection: Supports AES 256-bit encryption and various RAID configurations (0, 1, 5, 10, JBOD, spanning) for data security and performance optimization.
Optimized for NAS Environment
The included WD Red 4TB drives are specifically designed for 24/7 NAS environments, featuring NASware technology for optimized performance, vibration compensation, and data protection. The My Cloud EX4100 operates on 100-240 VAC at 50-60 Hz and is compatible with various operating systems, including Windows and macOS.
Included Benefits
The My Cloud EX4100 comes with a complimentary 2-month membership to the Adobe Creative Cloud Photography plan, offering access to Adobe Photoshop Lightroom CC, Photoshop CC, and 20GB of cloud storage. This offer is redeemable during product registration, subject to certain terms and conditions.
Upgrade your storage infrastructure with the WD My Cloud EX4100 NAS server, providing a robust solution for data storage, sharing, and backup needs.
Additional information
| Weight | 18.45 lbs |
|---|---|
| Dimensions | 18 × 14 × 12 in |
| CPU | 1.6 GHz Marvell ARMADA 388 Dual-Core |
| Supported Protocols | Bonjour<br>IPv4<br>IPv6<br>SSH<br>iSCSI |
| Certifications | NRCAN, RoHS, as per Manufacturer |
| Storage Humidity | 5 to 95% |
| Storage Temperature | -4 to 149°F / -20 to 65°C |
| Operating Humidity | 8 to 90% |
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Encryption | 256-Bit AES |
| Supported Languages | Czech<br>Dutch<br>English<br>French<br>German<br>Hungarian<br>Italian<br>Japanese<br>Korean<br>Norwegian<br>Polish<br>Portuguese<br>Russian<br>Simplified Chinese<br>Spanish<br>Swedish<br>Traditional Chinese<br>Turkish |
| Supported File Systems | EXT2, EXT3, EXT4, FAT, FAT32, HFS+ |
| Max User Accounts | 800 |
| Max Groups | 200 |
| iSCSI Support | Yes |
| Link Aggregation and Failover Support | Yes |
| Total Installed Memory | 2 GB DDR3 |
| Wake on LAN | Yes |
| Carrier-Less Drive Bays | Yes |
| Hot-Swap Support | Yes |
| RAID Modes | RAID 0, 1, 10, 5, JBOD, SPAN |
| Form Factor | Desktop |
| Compatible Drive Interface | SATA III |
| Connections | 2 x RJ45 (Gigabit Ethernet)<br />3 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s)) |
| Number of Bays | 4 x 3.5" |
| Rotational Speed | 5400 rpm |
| Interface | SATA III |
| Included Drives | 4 x 4 TB 3.5" HDD |
| Total Raw Capacity | 16 TB |
| Status Monitoring | LCD Screen, LED Indicator |
